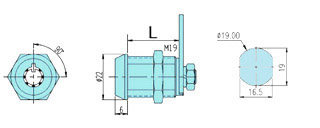

Tubular Cam Lock

12001

[Specification]	7 pin tubular multi length cam lock. Zinc alloy die cast housing and cylinder. 7 pins mechanism cam lock. Bright chrome plated standard. Rotation angle 90 CW or CCW. Round spring clip mounted. Available for K/A or K/D 10,000combinations.
[Accessories]	2 tubular keys in nickel 1 hex. nut 1 cam lever
[Special Use]	Use for file cabinets,steel cabinet doors.
[Options]	Key rotation angle. 17/20/22/25/30mm length options. Cam lever style. Other finish. Cam lever style. （More cam lever style please click “ Various cam lever styles”）

No.	12001	12002	12003	12004	12005
L	16.8	20	22	25	30

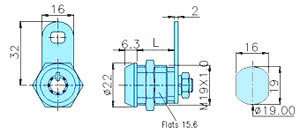

Radial pin tubular cam lock

12001P

[Specification]	Radial 7 pin tubular cam lock. Zinc alloy die cast housing and cylinder. 7 pins mechanism cam lock. Bright chrome plated standard. Rotation angle 90 CW or CCW. Round spring clip mounted. Six house available Having anti-drilling function. Available for K/A or K/D 10,000combinations.
[Accessories]	2 tubular keys in nickel 1 hex. nut 1 cam lever
[Special Use]	Use for file cabinets,steel cabinet doors,machine.
[Options]	Key rotation angle. Cam lever style. Other finish. Cam lever style. （More cam lever style please click “ Various cam lever styles”）

No.	12001p	12002p	12003p	12004p	12005p
L	16.8	20	22	25	30
